Expandable Folding Container House

It takes standard containers as the basic carrier: during transportation, it maintains a compact container form (complying with standard transportation dimensions for road and sea transport); after being placed on-site, it can be expanded to one side, both sides, or the top through mechanical or manual operation, increasing the internal usable space to 1.5 to 3 times the area of the original container. Meanwhile, it features "convenient transportation, rapid deployment, flexible space, and high durability", making it an efficient spatial solution for scenarios such as temporary accommodation, mobile offices, and emergency support.

I. Core Features: Three Advantages Solving "Transportation - Space - Deployment" Pain Points

1. Transportation: Compatible with Standard Logistics, Significantly Reducing Costs

When unexpanded, its external dimensions fully comply with international standard container specifications (e.g., 20-foot, 40-foot). No special transportation tools are required—it can be directly transported by trucks, container ships, and railway flatcars, adapting to the globally universal logistics network and avoiding the trouble of "needing customized transportation plans for non-standard-sized buildings".

A single truck can transport 3-4 units (while only 1 unit of a traditional fixed container house of the same size can be transported per truck). Moreover, no component disassembly is needed, and it can be directly hoisted during loading and unloading. This greatly reduces the number of transportation trips and loading/unloading working hours, making it particularly suitable for cross-regional and long-distance spatial deployment needs (e.g., remote construction sites, field operation points).

2. Space: Expandable Design, Balancing "Compact Transportation" and "Spacious Use"

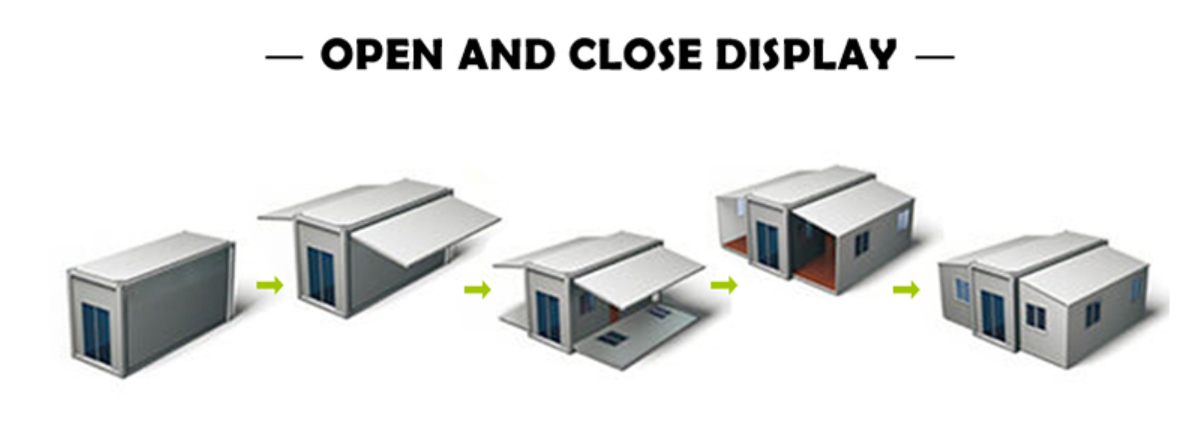

50. Flexible Expansion Methods: According to needs, it is divided into "single-side expansion" (pulling out wall panels to one side, increasing space by approximately 1 time—e.g., a 20-foot container expands from 15㎡ to 30㎡), "double-side expansion" (expanding to both sides simultaneously, increasing space by approximately 2 times), and "top expansion" (the top rises to form a loft-style two-story space, suitable for accommodation scenarios). Some models also support splicing of multiple units to form larger spaces such as meeting rooms and dormitory clusters.

50. Practical Expanded Space: The expansion structure is driven by hydraulic rods or mechanical slides. After expansion, the wall panels and floors achieve seamless connection with no obvious gaps. The interior can be pre-reserved with door, window, water, and electricity interfaces—after expansion, only simple connection is needed to meet the basic functions of accommodation (equipped with beds and wardrobes), office (equipped with desks, chairs, and sockets), and storage (load-bearing floors suitable for cargo stacking), avoiding the problem of "foldable structures sacrificing space practicality".

3. Deployment: Rapid Assembly/Disassembly, No Complex Infrastructure Required

After being placed on-site, 2-4 people with basic tools can complete the expansion and assembly of one unit in 2-3 hours: first fix the container base (simple foundations such as helical piles or cement blocks can be used, no ground hardening required), then drive the expansion structure via manual rockers or electric hydraulic devices, and finally install doors/windows and connect water/electricity. The entire process involves no welding or concrete pouring. Compared with the "3-5 day construction cycle" of traditional prefabricated houses, the efficiency is improved by more than 80%.

During disassembly, only reverse operations are needed to restore it to the standard container form within 1 hour. It can be directly hoisted and transported to the next site for repeated use, with no construction waste generated—meeting the demand for "circular utilization of temporary spaces".

In summary, the core value of the Expandable Folding Container House lies in: using "standard containers" as the transportation carrier to solve the problems of "convenience and cost", adopting "expandable structures" to solve the problem of "space utilization", and at the same time adapting to complex scenarios with its durable steel structure. It has become a high-quality modular spatial solution that balances "transportation convenience, space practicality, and scenario adaptability".

For specific parameters, customized solutions, or quotations, please feel free to contact us.
