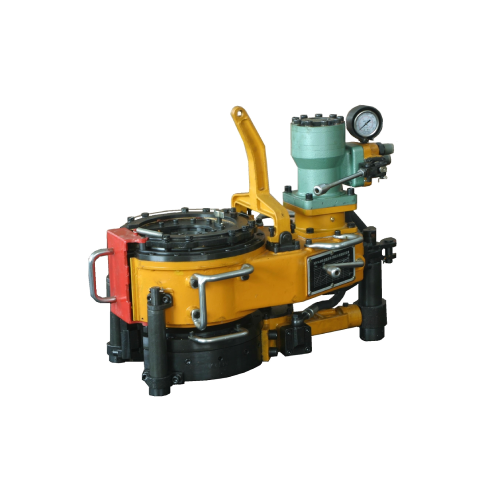

XQ114/6YB Hydraulic Power Tong
The XQ114-6YB Hydraulic Power Tong is a tool commonly used in the petroleum industry. Below is a detailed introduction to it:
Application: The XQ114-6YB Hydraulic Power Tong is mainly used in oilfield workover operations for quick makeup and breakout operations on 2 3/8"-4 1/2" tubing, small drill pipes, casings, and other tubulars.
Application: The XQ114-6YB Hydraulic Power Tong is mainly used in oilfield workover operations for quick makeup and breakout operations on 2 3/8"-4 1/2" tubing, small drill pipes, casings, and other tubulars.
XQ114/6YB Hydraulic power tong
1. Application: Tubing:60mm-114mm (2 3/8"to 4 1/2")
2. High gear rated torque:1.5 kN.m (1106 ft.lbs)
3. Low gear rated torque:6 kN.m (4425 ft.lbs)
4. high gear max rotation speed:85 RPM
5. Low gear max rotation speed:20 RPMM
6. Opening of tong head:118 mm (4.65")
7. Overall dimension (LXWXH):750x500x600 mm(30"x20"x24")
8. Weight:220 kg(485lbs)
9. Rated system pressure:11Mpa (1595 Psi)
10. Max oil supply:100 L/ min(26GPM)
