Swivel Joint（Chiksan）

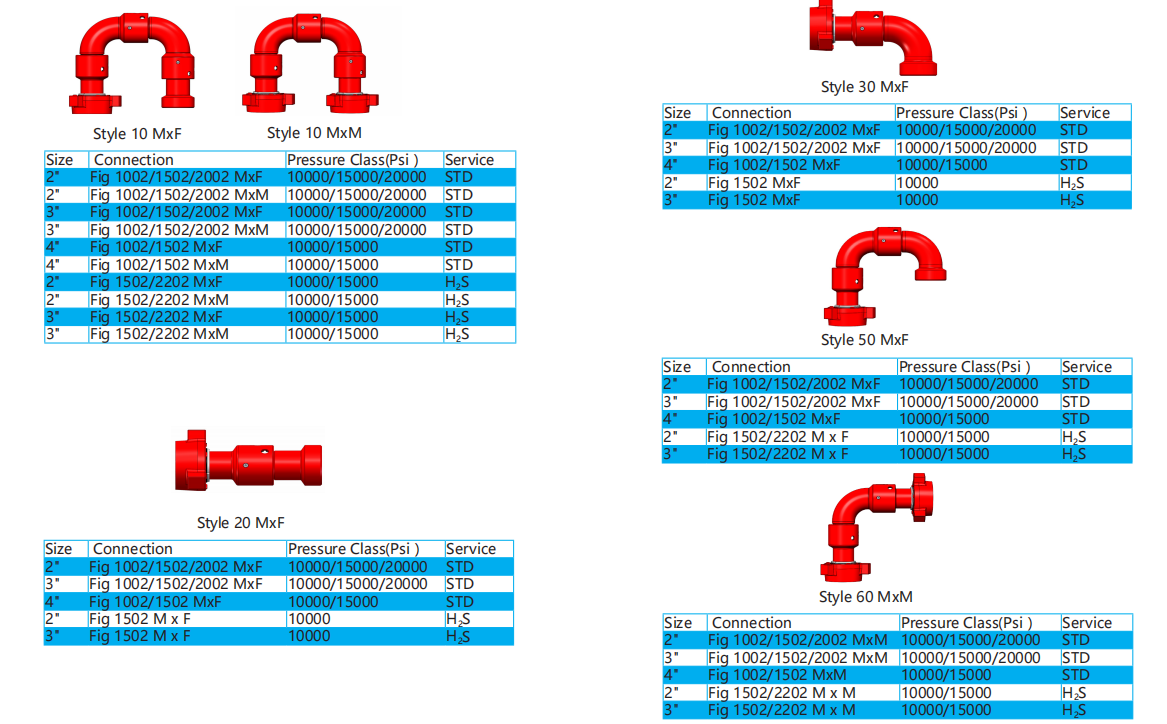

Common types of Chiksan Swivel Joints (classified by Style/Type) include Type 10, Type 20, Type 30, Type 50, Type 60, Type 80, and Type 100; among these, Type 10, Type 50, and Type 100 are the most widely used.

Size:2"~4"
CWP: 5000~20000Psi
Temperature Rate :-29~+121℃
Service: Std. or H2S
Standard: API 16C

✅ Key Selection Criteria

  1. Connection Configuration: End configurations (Male/Male, Female/Male, Female/Female) and hammer union specifications (e.g., Fig. 1502, Fig. 1002).

  2. Service Conditions: Standard or sour service (compliance with standards like NACE MR0175 is required for sour conditions).

  3. Size and Pressure: Sizes range from 1" to 4", and pressure ratings up to 20,000 psi. Select long or short sweep based on on-site space and flow rate requirements.

  4. Interchangeability: Most manufacturers produce swivel joints to FMC standards, enabling interchangeability with FMC/Chiksan products

✅Quick Order Parameter Checklist

  • Type (e.g., Type 10/50/100), nominal size, and rated pressure

  • End connection configuration (M/M, F/M, F/F) and hammer union specification (Fig. 1502/1002)

  • Service condition: Standard or sour (whether NACE compliance is required)

  • Sweep type: Long sweep or short sweep

  • Operating temperature and fluid medium
